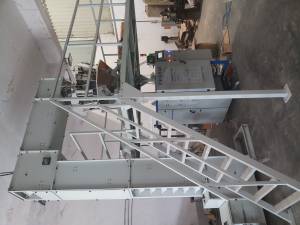

Namkeen Pouch Packing Machine In Bhilwara

Total operating system HMI in touch screen.
Total Panel controlling in PLC base.
Packing Range: 18gm – 500gm (Subject to density & grams of
product).
Filling system in ten head Weigher.
Filling Accuracy0.5 %( Subject- Density & grams of product).
Type of Sealing: Centre Sealing Pillow type.
Packing material: All free flow items we can pack like Cashew,
Almond, Pulses, Namkeen & all grain type product.
Film size Width 180mm to 440mm (In between any size).
120mm to 300mm Length
Thickness of film 50-70 microns.
Film role: Laminated film in role suppurated type E.g.
Aluminum foil Pe. PP.
Speed: 55-65 pouch/min. (Density & grams of product).
Power requirements 3 phase 50 Hz.
Power consumption 3.2KW/Hour 230V AC.
Compressed air 2.5 HP Required.
All contact Parts are in 304 SS.
Sealer heating system continuously.
Pneumatic type sealing.
Film pulling with Vector driven down belt.
Maximum reel diameter 500 meter.
Pouch counter provided.
Automatic signal - buzzer an
